product description:

CDLF vertical multistage stainless steel centrifugal pump, processed from the world advanced technology , takes the advantages of outstanding design of hydraulic model, high efficiency and sound energy conservation. The inside impeller, casing and other main components are all stainless steel punched. The flow channel is fairly smooth. The bearing shell and sleeve are made of hard alloy to achieve excellent service life and to avoid secondary pollution.Shaft seal uses wearing resistant mechanical seal to enable sound leak-tightness.

Application:

CDL/CDLF pump are multi-functional products.

It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure.

CDLF type is applicable to convey non-corrosive liquid, while CDLF is suitable for slightly corrosive liquid.

Water supply: Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.
Industrial boosting: Process flow water system, cleaning system, highpressure washing system, fire fighting system.

Industrial liquid conveying: Cooling and air-conditioning, system ,boiler water supply and condensing system,

machine-associated purpose, acids and alkali.
Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.
Irrigation: Farmland irrigation, spray irrigation, dripping irrigation.

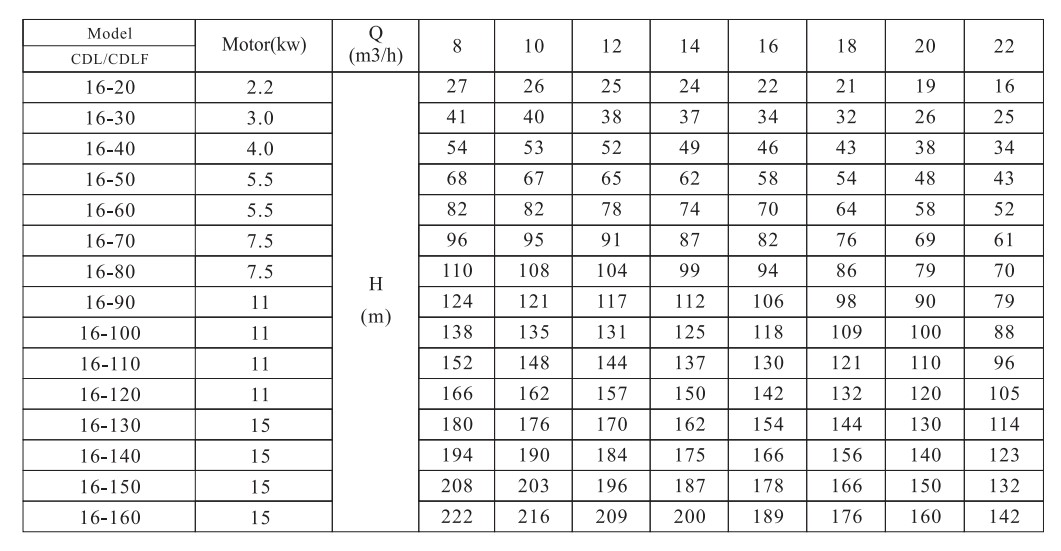

Technical Data:

Flow rate: up to 32 m³/h

Head: up to 196 m

Speed: max 2900 rpm

Temperature: max 120 °C

Casing pressure: up to 4.8MPa

Shaft seal: mechanical sealing

Material: nodular iron, stainless steel, duplex
