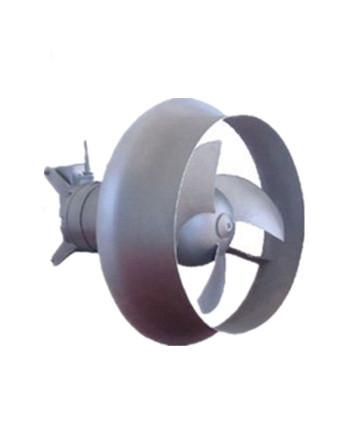

QJB submersible mixer pump sewage treatment equipment water pump
material use cast iron or stainless steel
Product Name
QJB sewage treatment equipment water pump
Introduction
QJB submersible mixer as a water treatment process is one of the
key equipment in the water treatment process, the biochemical
processes can be realized in solid-liquid two-phase flow and
homogeneous solid-liquid-gas flow, the flow of process
requirements. It consists of submersible motor, impeller and mounting system,
etc.
Applications
Stirring to create a flow for the month, to improve water quality,
increase oxygen content in water, effectively prevent the
deposition of suspended solids
Conditions of Use
In order to ensure the normal to make diving mixer, please select
the correct working environment and operating mode.
Maximum medium temperature does not exceed 40 degrees; and PH
range: 5-9;
Medium density not exceeding 1150Kg / m 'diving deeper than 10m.
Mixer must be fully submerged underwater diving work, not flammable
and corrosive and high temperature environments
Features
♦ Compact structure,small volume,light weight, easy operation
maintenance,fast installation,long service life etc.
♦ The blade has the self-cleaning function, can prevent sundries
wind,blocking
♦ Can combine with aeration system to make energy reduced greatly,
greatly increase oxygen volume, effective prevent sediment.
♦ Motor winding is F grade insulation, protection grade is IP68.
♦ All fastener is stainless steel.
| Model | Motor Power(Kw) | Rated current(A) | Rpm of Vane (r/min) | Diameter of vane (mm) | Thrust(N) | Weight(kg) |
| QJB0.85/8-260/3-740/S | 0.85 | 3.2 | 740 | 260 | 163 | 55/65 |
| QJB1.5/6-260/3-980/S | 1.5 | 4 | 980 | 260 | 290 | 55/65 |
| QJB2.2/8-320/3-740/S | 2.2 | 5.9 | 740 | 320 | 582 | 88/93 |
| QJB4/6-320/3-960/S | 4 | 10.3 | 960 | 320 | 609 | 88/93 |
| QJB1.5/8-400/3-740/S | 1.5 | 5.2 | 740 | 400 | 600 | 74/82 |
| QJB2.5/8-400/3-740/S | 2.5 | 7 | 740 | 400 | 800 | 74/82 |
| QJB3/8-400/3-980/S | 3 | 8.6 | 980 | 400 | 920 | 74/82 |
| QJB4/6-400/3-480/S | 4 | 10.3 | 480 | 400 | 1200 | 74/82 |
| QJB4/12-620/3-480/S | 4 | 14 | 480 | 620 | 1400 | 190/206 |
| QJB5/12-620/3-480/S | 5 | 18.2 | 480 | 620 | 1800 | 196/212 |
| QJB7.5/12-620/3-480/S | 7.5 | 28 | 480 | 620 | 2600 | 240/256 |
| QJB10/12-620/3-480/S | 10 | 32 | 480 | 620 | 3300 | 250/266 |
