QDX 1 Inch Submersible Water Pump 1.5 Hp 1.5m3/H Submerged Sewage Pump

Ask Lasest Price
Brand Name :	RTK
Model Number :	QDX
Certification :	ISO9001
Price :	50-200USD
Payment Terms :	T/T, Western Union
Supply Ability :	100pcs one month
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

QDX 1 Inch Submersible Water Pump 1.5 Hp 1.5m3/H Submerged Sewage Pump

QDX 1'' 1.5m3/h 1.5 hp water submersible pump use on clean water

Detail

Applications:

This submersible water pump are uses for Well pumping,river pumping,farming irrigation,water supply and drainage in breeding industry and domestic use,etc

Pump Materials:

1)Pump body:Cast aluminum

2)Mechanical Seal:Ceramic-Graphite,Silicon

3)Motor bracket: Cast Aluminum Or Cast Iron

4)Motor shaft:CS45# Or Ss420

5)Impeller: Cast Aluminum

6)Protection class: IPX8

7)Insulation class: E

Working Conditions:

Max.medium temperature: +40°C

Max.ambient temperature: +40°C

Max.working pressure: 5bar

Power voltage:single phase AC 220V/50HZ,three phase AC 380V/50HZ

Technical Data

MODEL	FLOW(m3/h)	HEAD(m)	POWER(kW)	OUTLET(INCH)	VOLTAGE(V)
QDX1.5-17-0.37	1.5	16	0.37	1	220
QDX3-20-0.55	3	20	0.55	1	220
QDX10-12-0.55	10	10	0.55	1.5	220
QDX15-7-0.55	15	7	0.55	2	220
QDX1.5-32-0.75	1.5	32	0.75	1	220
QDX7-18-0.75	7	18	0.75	1.5	220
QDX10-16-0.75	10	15	0.75	2	220
QDX15-10-0.75	15	10	0.75	2.5	220
QDX30-6-0.75	30	6	0.75	3	220
QDX10-18-1.1	15	15	1.1	2	220
QDX15-15-1.1	15	15	1.1	2.5	220
QDX40-7-1.1	40	7	1.1	3	220
QDX15-18-1.5	15	18	1.5	2	220
QDX40-9-1.5	40	9	1.5	3	220
QDX50-7-1.5	50	7	1.5	4	220

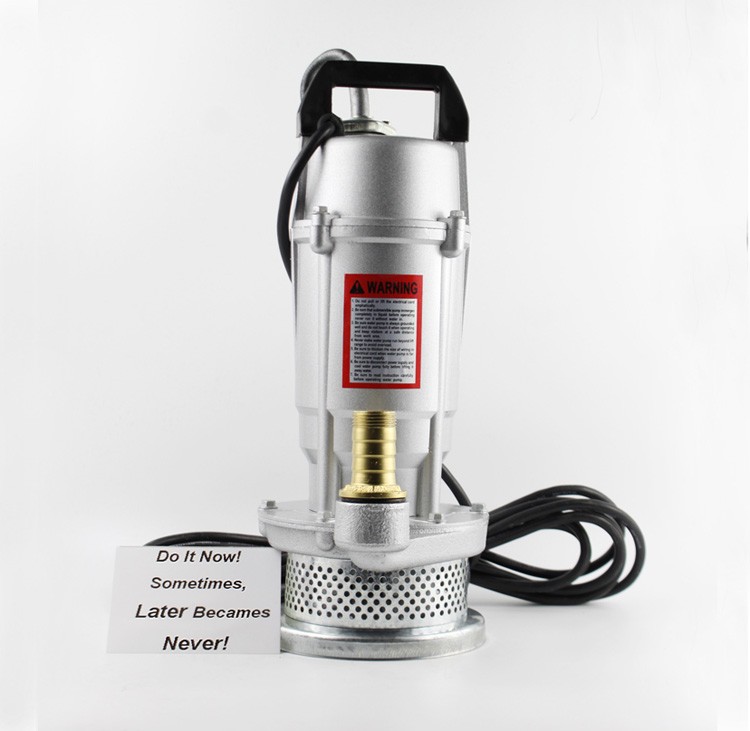

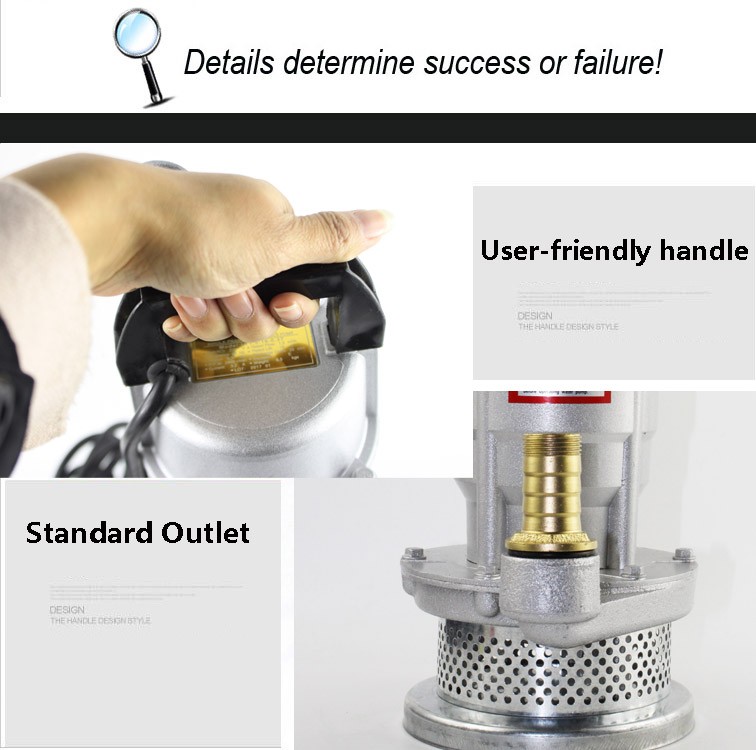

Photos

Package

Product Tags:

1 Inch Submersible Water Pump 1.5 Hp

QDX Submersible Water Pump 1.5 Hp

1.5m3/H Submerged Sewage Pump

QDX 1 Inch Submersible Water Pump 1.5 Hp 1.5m3/H Submerged Sewage Pump
