CQB-F Anti Corrosion Chemical Circulating Pump Acid Transfer Pump

    Buy cheap CQB-F Anti Corrosion Chemical Circulating Pump Acid Transfer Pump from wholesalers

    Buy cheap CQB-F Anti Corrosion Chemical Circulating Pump Acid Transfer Pump from wholesalers
    • Buy cheap CQB-F Anti Corrosion Chemical Circulating Pump Acid Transfer Pump from wholesalers
    • Buy cheap CQB-F Anti Corrosion Chemical Circulating Pump Acid Transfer Pump from wholesalers
    • Buy cheap CQB-F Anti Corrosion Chemical Circulating Pump Acid Transfer Pump from wholesalers

    CQB-F Anti Corrosion Chemical Circulating Pump Acid Transfer Pump

    Ask Lasest Price
    Brand Name : ZY
    Model Number : CQB-F
    Certification : ISO9001
    Price : 400
    Payment Terms : T/T, Western Union
    Supply Ability : 15pcs 1 month
    Delivery Time : 15days
    • Product Details
    • Company Profile

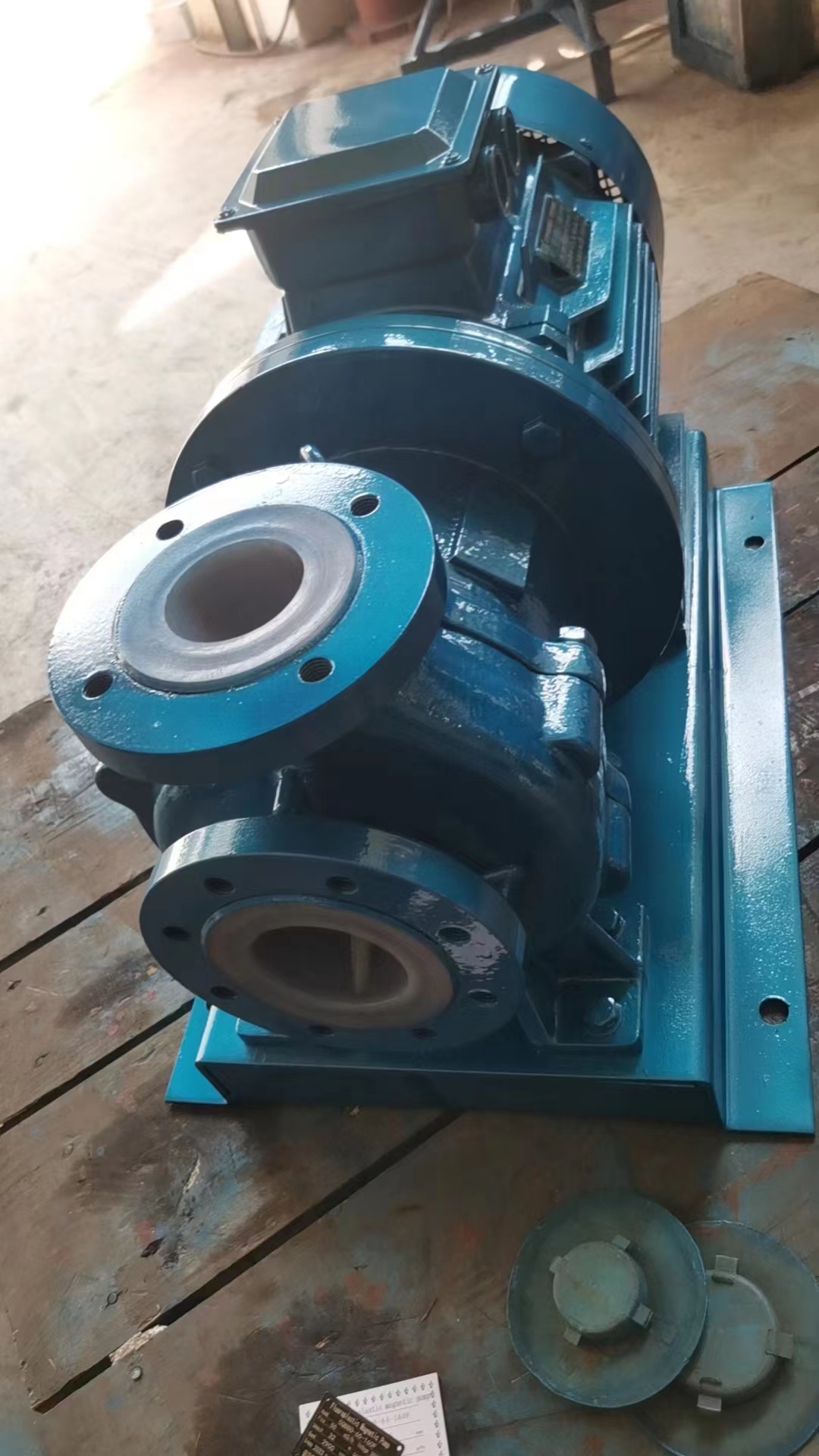

    CQB-F Anti Corrosion Chemical Circulating Pump Acid Transfer Pump

    CQB-F anti corrosion chemical circulating pump magnetic drive pump transfer acid pump

    CQB-F anti corrosion chemical circulating pump magnetic drive pump transfer acid pump voltage 380v/460v

    Specifications

    1. widely usage
    2. anti-corrosion
    3. non-ageing
    4. non-leakage


    Brief Instruction:

    CQB-F fluorine plastic magnetic drive pumps are inline with fluorine. They adopt the best material for anti-corrosion.

    Leakage proof design: It is with magnetic drive not shaft seal.

    Usage temperature: -20 to 100 degree


    Parameters


    Working Principle:Centrifugal, Magnetic
    Flowrate range:1.6~100m3/h
    Head range:7~50m
    Max.permissible fluid temperature:100°C(212°F)
    Material:Cast iron lined with FEP, PFA
    Power specs:0.18~18.5kw / 110~480v / 50/60hz

    ModelCapacity (m³/h)Head
    (m)    		Inlet
    (mm)    		Outlet (mm)NPSH
    (m)    		Motor Power (KW)
    CQB20-15-75F1.67201560.18
    CQB25-20-100F2.510.5252060.37
    CQB32-20-110F5.513322050.55
    CQB40-25-120F6.315402550.75
    CQB40-40-100F6.311404050.55
    CQB40-40-125F6.317.540403.71.1
    CQB40-25-150F6.32540253.51.5
    CQB40-25-160F6.33240253.53
    CQB40-25-200F6.35040253.55.5
    CQB50-32-125F12.52050323.52.2
    CQB50-32-160F12.53250323.54
    CQB50-32-200F12.55050323.57.5
    CQB65-50-125F2520655044
    CQB65-50-150F2025655044
    CQB65-50-160F17.532655044
    CQB65-50-180F1838655045.5
    CQB80-65-125F5020806547.5
    CQB90-65-160F50328065411
    CQB100-80-125F1002010080411
    CQB100-80-160F1003210080418.5
