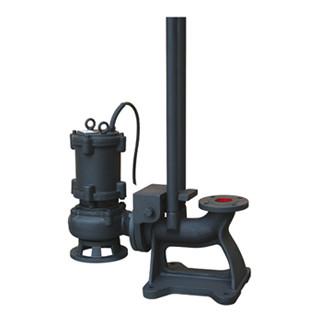

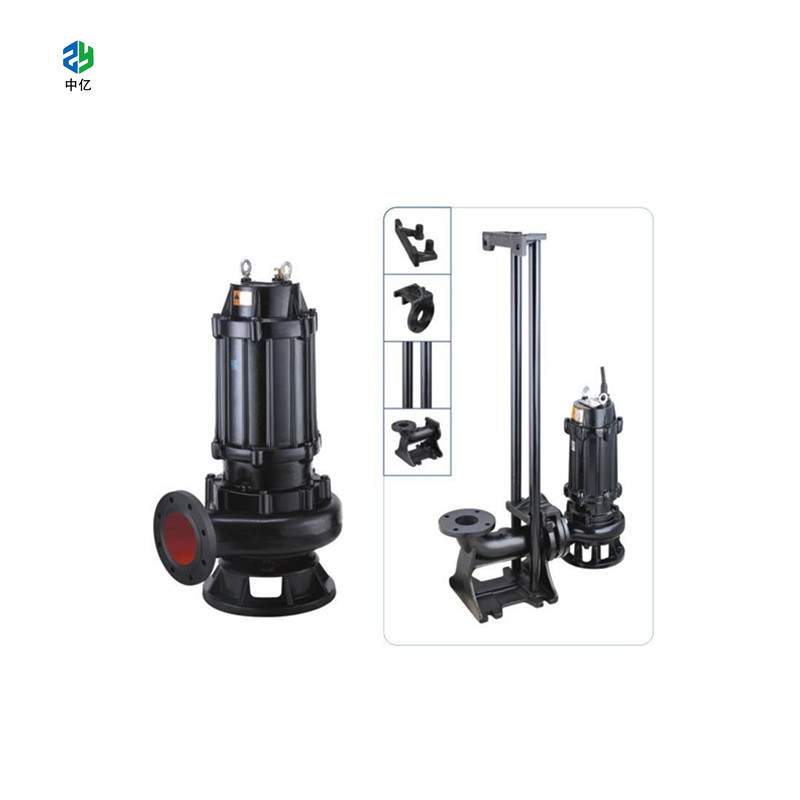

Compact WQ Series Non-Clogging Submersible Sewage Pump with couping
for Residential Sewage Stations
Detailed Product Description
1. Easy to install
2. Reasonable structure, the product forms
3. Small size, low noise
4. Compact structure, small size
Product Overview
WQ series non-clogging submersible sewage pump fixed, the company
is based on the user's requirements and the actual installation
conditions, different ways, combined with our years of practical
experience, designed to optimize reasonable, with the installation
of this product easy to use, reasonable structure.
Scope
WQ series non-clog submersible sewage pumps are suitable for
stationary commercial plant for polluted wastewater discharges,
residential sewage stations, urban sewage treatment plant drainage
systems, air defense system, pumping station, water plant's water
supply facilities, hospitals, hotels sewage emissions, municipal engineering construction sites, mining
facilities with machines, biogas digesters in rural areas,
irrigation and other industries, conveyor belt particles of sewage,
dirt.
Conditions of Use
Sewage pump series in the rated voltage is 380V, 50Hz power
frequency applied
Medium temperature does not exceed 40 degrees Celsius, medium
density ≤ 1150kg/m3, PH value in the range 5-9;
Transmission medium in viscosity does not exceed 1000CP;
Work product must be fully submerged in the water is running, but
the diving depth of not more than 10m;
Material mainly cast iron, can not be used in high corrosive or
contain strong corrosive medium;
Note: In the selection or installation of the pump before using the
actual conditions of use must meet the above provisions to ensure
the proper use of the product!
Performance parameters
Calibermm | Model | Flowm3/h | Headm | speed r/min | Power kw |
25 | 25WQ(QW/YW)2-10-0.37 | 2 | 10 | 2900 | 0.37 |
25WQ(QW/YW)4-10-0.55 | 4 | 10 | 2900 | 0.55 |
25WQ(QW/YW)6-10-0.75 | 6 | 10 | 2900 | 0.75 |
25WQ(QW/YW)6-15-1.1 | 6 | 15 | 2900 | 1.1 |
25WQ(QW/YW)10-15-1.5 | 10 | 15 | 2900 | 1.5 |
25WQ(QW/YW)10-20-2.2 | 10 | 20 | 2900 | 2.2 |
32 | 32WQ(QW/YW)8-12-0.75 | 8 | 12 | 2900 | 0.75 |
32WQ(QW/YW)6-15-1.1 | 6 | 15 | 2900 | 1.1 |
32WQ(QW/YW)12-15-1.5 | 12 | 15 | 2900 | 1.5 |
32WQ(QW/YW)10-20-2.2 | 10 | 20 | 2900 | 2.2 |
40 | 40WQ(QW/YW)10-10-0.75 | 10 | 10 | 2900 | 0.75 |
40WQ(QW/YW)8-15-1.1 | 8 | 15 | 2900 | 1.1 |
40WQ(QW/YW)8-20-1.5 | 8 | 20 | 2900 | 1.5 |
40WQ(QW/YW)12-15-1.5 | 12 | 15 | 2900 | 1.5 |
40WQ(QW/YW)15-20-2.2 | 15 | 20 | 2900 | 2.2 |
