0.75KW-22KW Wastewater Treatment Mixers QJB Submersible Mixer

Ask Lasest Price
Brand Name :	zy
Model Number :	QJB
Price :	400-1500USD
Delivery Time :	7days
Payment Terms :	TT, Western Union, MoneyGram
Supply Ability :	500UNIT/MONTH
Certification :	ISO9001

Add to Cart

Product Details
Company Profile

0.75KW-22KW Wastewater Treatment Mixers QJB Submersible Mixer

Detailed Product Description

1..Two independent mechanical seals
2.High efficiency, self-cleaning function
3.High efficiency, self-cleaning function

Product Overview

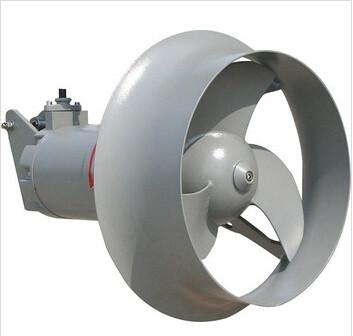

QJB submersible mixer as a water treatment process is one of the key equipment in the water treatment process, the biochemical processes can be realized in solid-liquid two-phase flow and homogeneous solid-liquid-gas flow, the flow of process requirements. It consists of submersible motor, impeller and mounting system, etc.

Applications

Stirring to create a flow for the month, to improve water quality, increase oxygen content in water, effectively prevent the deposition of suspended solids
Conditions of Use
In order to ensure the normal to make diving mixer, please select the correct working environment and operating mode.
Maximum medium temperature does not exceed 40 degrees; and PH range: 5-9;
Medium density not exceeding 1150Kg / m 'diving deeper than 10m.
Mixer must be fully submerged underwater diving work, not flammable and corrosive and high temperature environments

Specific

Model	Motor power (kw)	Rated current (A)	rpm of impeller(r/min)	Diameter of impeller(mm)	Thrust (N)	Weight (KG)
QJB220/960-0.37/S	0.37	1.12	960	220	138	45/50
QJB220/1400-0.55/S	0.55	1.35	1400	220	145	45/50
QJB260/740-0.85/C/S	0.85	3.2	740	260	163	55/65
QJB260/960-1.5/C/S	1.5	4	960	260	290	55/65
QJB320/740-2.2/C/S	2.2	5.9	740	320	582	88/93
QJB320/960-4/C/S	4	10.3	960	320	609	88/93
QJB400/740-1.5/C/S	1.5	5.2	740	400	600	74/82
QJB400/740-2.5/C/S	2.5	7	740	400	800	74/82
QJB400/740-3/C/S	3	8.6	740	400	920	74/82
QJB400/960-4/C/S	4	10.3	960	400	1200	74/82
QJB620/480-4/S	4	14	480	620	1400	190/206
QJB620/480-5/S	5	18.2	480	620	1800	196/212
QJB620/480-7.5/S	7.5	28	480	620	2600	240/256
QJB620/480-10/S	10	32	480	620	3300	250/266
QJB560/740-11/S	11	25	740	560	2900	194/209
QJB560/740-15/S	15	34	740	560	3460	260/275
QJB740/740-18.5/S	18.5	41	740	740	4200	276/294
QJB740/740-22/S	22	47.4	740	740	5400	292/310
QJB620/480-5.5/S	5.5	11	480	620	1800	160/176
QJB620/480-7.5/S	7.5	15	480	620	2600	182/198
QJB620/480-11/S	11	22	480	620	3300	224/240
QJB740/235-15/S	15	30	235	740	3680	288/306
QJB890/326-18.5/S	18.5	36	326	890	4600	364/382
QJB890/326-22/S	22	42	326	890	5760	380/398
