Dubai Bengal Market Small Flow Diesel Jockey Booster Pump Set
Fire pump package comprises a combination of electric motor driven
pump, diesel engine driven and electric motor driven jockey pumps
that supply for fire suppression systems. Fire pump package is
required to comply with Local Civil Defense Authority regulations
and International Codes of Practice e.g. National Fire Protection
Association
| 100GPM @4BAR |
| Pump | Model | Capacity(GPM) | Head(BAR) | Power(KW) | Material |
| Electric | XBD4/5-50L(50-200) | 100 | 4 | 5.5 | cast iron |
| Diesel engine | XBC4/5-IS | 100 | 4 | 5.5 | cast iron |
| Jockey | CDL2-70 | 10 | 5 | 0.75 | SS304 |
| 100GPM @6BAR |
| Pump | Model | Capacity(GPM) | Head(BAR) | Power(KW) | Material |
| Electric | XBD6/5-65L(65-250B) | 100 | 6 | 7.5 | cast iron |
| Diesel engine | XBC6/5-IS | 100 | 6 | 7.5 | cast iron |
| Jockey | CDL2-100 | 10 | 7 | 1.1 | SS304 |
| 200GPM @6BAR |
| Pump | Model | Capacity(GPM) | Head(BAR) | Power(KW) | Material |
| Electric | XBD6/10-65L(65-250) | 200 | 6 | 15 | cast iron |
| Diesel engine | XBC4/5-IS | 200 | 6 | 22 | cast iron |
| Jockey | CDL4-90 | 20 | 7 | 2.2 | SS304 |
| 500GPM @5BAR |
| Pump | Model | Capacity(GPM) | Head(BAR) | Power(KW) | Material |
| Electric | XBD5/30-100L(100-200) | 500 | 5 | 22 | cast iron |
| Diesel engine | XBC5/30-IS | 500 | 5 | 30 | cast iron |
| Jockey | CDL12-60 | 50 | 6 | 4 | SS304 |
| 500GPM @8BAR |
| Pump | Model | Capacity(GPM) | Head(BAR) | Power(KW) | Material |
| Electric | XBD8/30-100L(100-250) | 500 | 8 | 37 | cast iron |
| Diesel engine | XBC8/30-D | 500 | 8 | 45 | cast iron |
| Jockey | CDL12-90 | 50 | 9 | 5.5 | SS304 |
| 500GPM @10BAR |
| Pump | Model | Capacity(GPM) | Head(BAR) | Power(KW) | Material |
| Electric | XBD10/30-100L(100-315A) | 500 | 10 | 55 | cast iron |
| Diesel engine | XBC10/30-D | 500 | 10 | 55 | cast iron |
| Jockey | CDL12-110 | 50 | 11 | 7.5 | SS304 |
| 750GPM @9BAR |
| Pump | Model | Capacity(GPM) | Head(BAR) | Power(KW) | Material |
| Electric | XBD9/50-125L(125-250) | 750 | 9 | 55 | cast iron |
| Diesel engine | XBC9/50-D | 750 | 9 | 90 | cast iron |
| Jockey | CDL16-90 | 70 | 10 | 11 | SS304 |
| 750GPM @10BAR |
| Pump | Model | Capacity(GPM) | Head(BAR) | Power(KW) | Material |
| Electric | XBD10/50-150L(150-315A) | 750 | 10 | 90 | cast iron |
| Diesel engine | XBC10/50-D | 750 | 10 | 90 | cast iron |
| Jockey | CDL16-100 | 70 | 11 | 11 | SS304 |

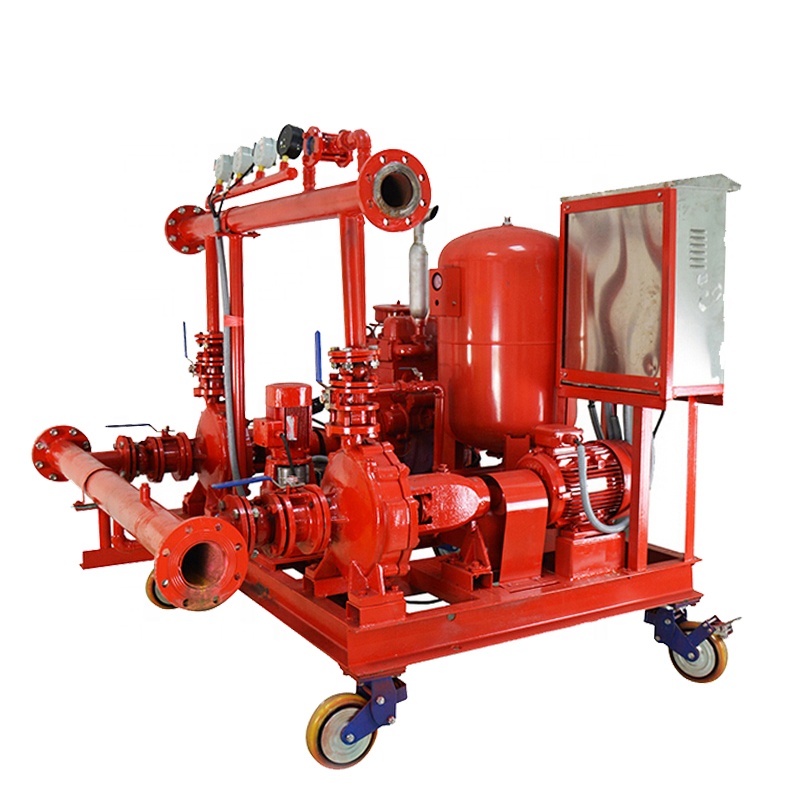

Small flow diesel and jockey fire water booster pump set with
centrifugal single stage end suction water
pump head, diesel engine (as ususal we use China famouos brand or
cummins,cat,isuze etc), cast iron base
is widely used in firefighting such as dock, building, oil stock,
industrial factory and agricultural farm irrigation.
It should comply with the GB6245-2006 and NFPA20 standard and other rules in related country.
I.Performance
Diesel end suction fire water pump set
1. Material: Cast iron,SS304,SS316L
2. Caliber: DN65-DN350 mm
3. Flow: 5-250 l/s 18-900 m3/hr 80-3960 gpm
4. Head: 3-150 m
5. Speed: 1450 rpm; 1500 rpm; 2900 rpm; 2950 rpm
6. Pressure: ≤1.5Mpa
7. Shaft power: 4-450 kw 5.5-612 hp
8. Diesel power: 5.5-505 KW 8-687 hp
9. Standard: NFPA 20; GB 6245-2006; CCCF
