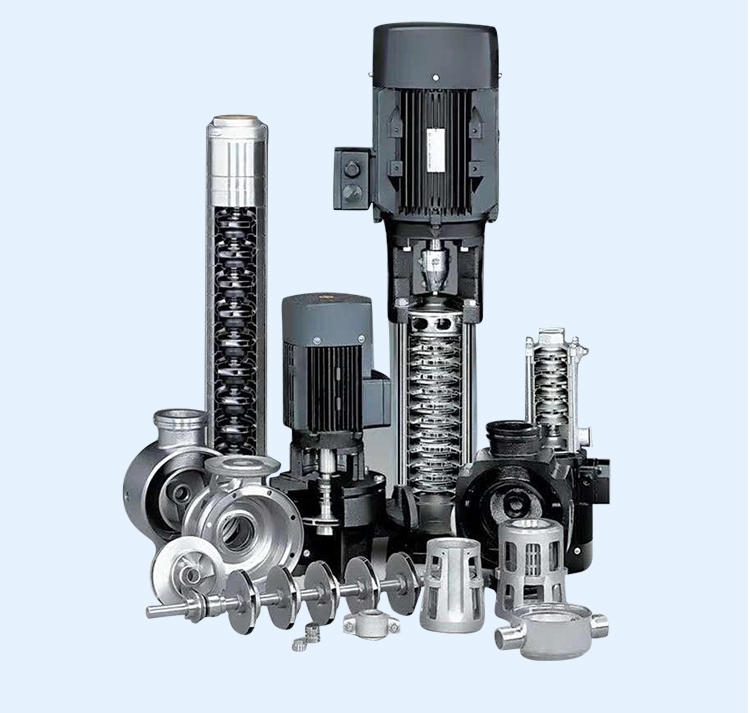

CDL/CDLF Stainless Steel Vertical Multistage Centrifugal Pump with
Wear-Resistant Mechanical Seal
CDL,CDLF Stainless steel vertical multistage centrifugal pump
integrates the advantage of high pressure of multistage pump,small
floor area of vertical pump and easy installation of pipeline pump.
Also, it has the advantages of energy efficiency,stable
operation,etc. Due to the adoption of excellent hydraulic model,
and the shaft seal id wear-resistant mechanical seal without
leakage and having a long service life.
APPLICATION
CDL/CDLF is a kind of multifunctional products. It can be used to
convey various medium from tap water to industrial liquid at
different temperature and with different flow rate and pressure.
CDL type is applicable to conveying non-corrosive liquid, While
CDLF is suitable for slightly corrosive liquid.
Water supply: Water filter and transport in Waterworks, boosting of
main pipeline, boosting in high-rise buildings.
Industrial boosting: Process flow water system,cleaning system,
high-pressure washing system, fire fighting system Industrial
liquid conveying:Cooling and air-conditioning system, boiler water
supply and condensing system, machine-associated purpose, acids and
alkali
Water treatment: Ultrafiltration system, reverse osmosis system,
distillation system, swimming pool, separator Irrigation: Farmland
irrigation, spray irrigation, dripping irrigation.
Operation conditions
Thin, clean, non-flammable and non-explosive liquid containing no
solid granules and fibers.
Liquid temperature:
Normal temperature type:-15℃~+70℃,
Hot water type:+70℃~+120℃
Ambient temperature :up to +40℃
Altitude :up to 1000m
Pump
CDL/CDLF is a kind of vertical non-self priming multistage
centrifugal pump,which is driven by a standard electric motor.The
motor output shaft directly connects with the pump shaft through a
coupling.The pressure-resistant cylinder and flow passage
components are fixed between pump head and in-and outlet section
with tie-bar bolts.The inlet and outlet are located at the pump
bottom at the same plane.This kind of pump can be equipped with an
intelligent protector to effectively prevent it from dry-running,
out-of-phase and overload.
Electric motor
Full-enclosed air-blast two-pole standed motor
Protection class:IP55
Insulation class:F
Standard voltage, 50HZ:1x220-230/240V
3x200-220/346-380V
3x220-240/380-415V
3x380-415V
60HZ:3×200-230/346-400V
3×220-255/380-440V
3×220-227/380-480V
