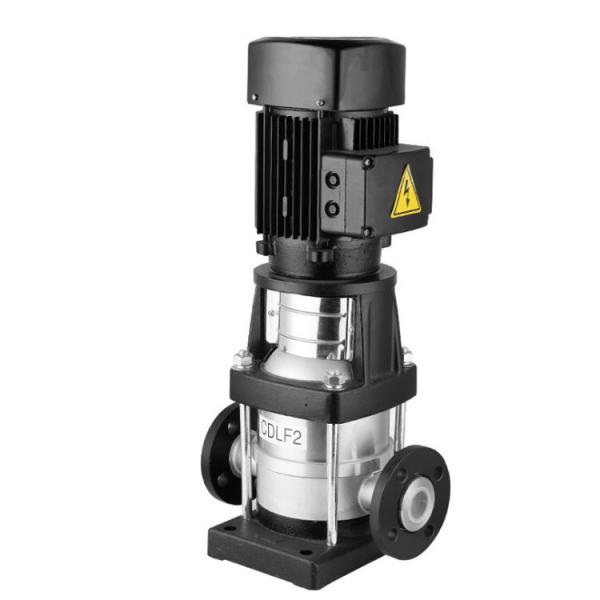

CDL 304 Stainless Steel Vertical Multistage Pipeline Pump with Flow
2-200m3/hr, Head 20-290m, DN50-DN350mm
Material:
304stainless steel
316stainless steel
Performance range:
1. Flow: 2-1000m3/hr
2. Head: 20-290m
3. Caliber: DN50-DN350mm
4. Rotate speed: 750-2950 r/min
5 .Motor power: 1.5-315kw
6.Material: stainless steel
Introduction:
CDL Vertical Multistage Pipeline Pump is the latest model,
energy-saving, less space demand, easy to install and stable
performance.
Introduction:
The CDL type pump is the latest type, which is characterized by
energy saving, space effective, easy installation, stable
performance and so on. The casing is made of 1Cr18Ni9Ti top-grade
stainless steel while the shaft gland adopts the
abrasion-resistance mechanical seal with zero leakage and a long
service life. It solves the axial force with the hydraulic balance
so that the pump has stable running with low noise. Its
installation conditions are more favorable than those of DL pump
because it can be easily installed in the middle of a segment of
horizontal pipeline. It can fully meet the need for the water
supply and drainage of high-rise buildings, deep wells and mines
and the like as well as for the fire fighting facilities.
Therefore, it is the optimal type to transport cold and hot water,
general media or. Other liquids with similar physical and chemical
properties as water in all major industries
Features:
1.With its 304 stainless steel shell and wear-resistant axle seal,
it is no leakage and long service life.
2.With hydraulic equilibrium to balance the axial force, the pump
can run more smoothly, less noise and, which can be easily
installed in the pipeline which is on the same level, enjoying
better installation conditions than DL model.
3. With these features, CDL Pump can easily meet the needs and
requirements for water supply and drain foe high building, deep
well and firefighting equipments.
Application:
Domestic water supply for buildings
Fire water supply for buildings
Water supply equipments
Water supply for boilers
Water circulation and boosting for industry
Other clean fluid transportation
