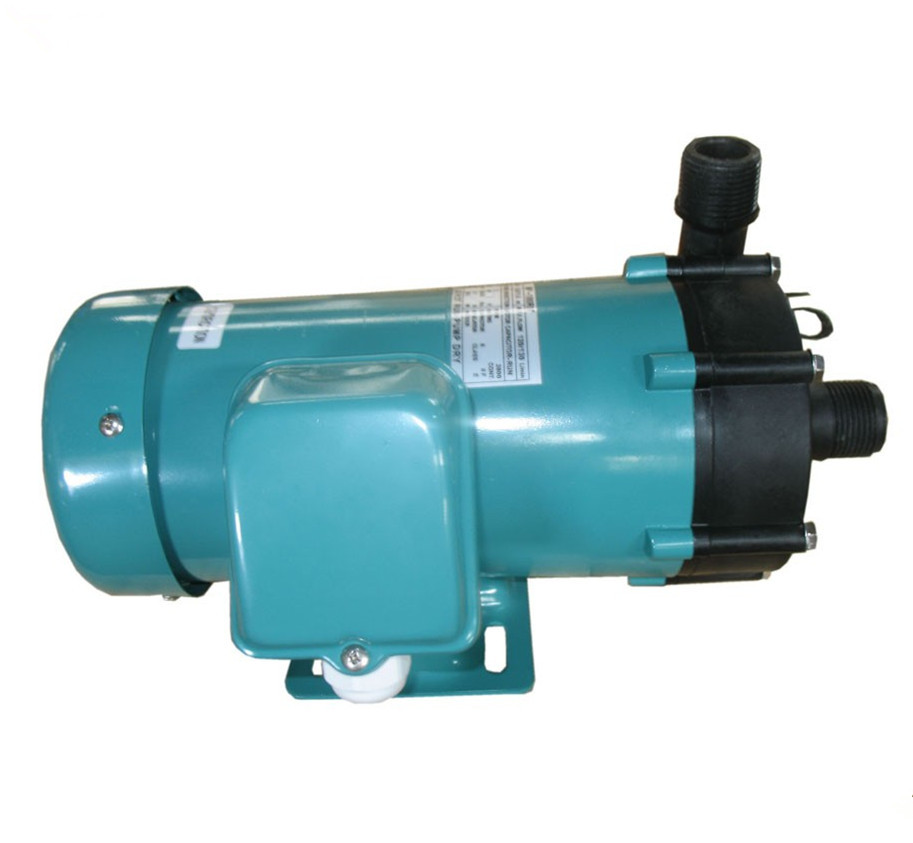

MP 380V Magnetic Water Pump Non Leakage Mag Drive Centrifugal Pump

Ask Lasest Price
Brand Name :	ZY
Model Number :	MP
Price :	$20-$2000
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1000set/month
Delivery Time :	7-30WD
Certification :	ISO9001

Add to Cart

Product Details
Company Profile

MP 380V Magnetic Water Pump Non Leakage Mag Drive Centrifugal Pump

MP non-leakage chemical pump AC 220v mini magnetic water pump

MP Non-Leakage AC 220V /380v Mini Magnetic Water Pump material pp and ss 304

Introduction:

1. MP series 220-volt small circulating water pump portable mini magnetic drive pump is with merits of compact structure, small volume, light weight.

2. Adopting advanced magnetic coupling technology, the mini magnetic drive pump has no leakage and even no shaft seal, this solves the problem of leakage of normal pump.

3. The magnetic drive pump could be used to transfer clean water or low corrosive chemical liquids.

4. Widely used in lab, household, irrigation, chemical industry, etc.

Products details:

Working Principle:	Centrifugal, Magnetic coupled
Main applications:	Chemical, water
Driver:	Electric motor
Power Specs:	380/415V 3phase; 220/240 V 1phase; 50hz/60hz
Max.permissible fluid temperature:	80°C(176°F)
Type of connection:	Thread, Tube
Installation position:	Horizontal
Casing material:	Fiber reinforced
Shaft seal type:	Static sealing
Maximum drive rating:	2.2KW(3HP)
Maximum caliber:	56mm(2 1/4inch)
Maximum discharge-side pressure:	0.22MPa(2.2bar)
Maximum head:	22m(72.2ft)
Flow rate range:	2.8-380L/min(0.7-100.3US.GPM)

MODEL	tube			hightest		specific gravity	motor
	inlet	outlet	pipe	50Hz/60Hz	lift		export
	inlet	outlet	pipe	50Hz/60Hz	50Hz/60Hz		50Hz/60Hz
MP-6R	14	14	-	1/1.4	0.8	<1.2	3
MP-6RZ	14	14	-	2.1/2.7	0.8	<1.1	3
MP-10R	14	14	-	1.5/2.1	1	<1.1	6
MP-10RN	14	14	-	1.5/2.1	1	<1.1	6
MP-15R	16	16	-	2.7/3.4	1.5	<1.3	10
MP-15RN	16	16	-	2.7/3.4	1.5	<1.3	10
MP-15RM	-	-	13	2.4/3.4	1.5	<1.3	10
MP-20R	18	18	-	3.1/4.3	2	<1.2	20
MP-20RM	-	-	16	3.1/4.3	2	<1.2	20
MP-20RX	26	26	-	1.8/2.5	1	<1.3	20
MP-20RXM	-	-	20	1.8/2.5	1	<1.3	20
MP-2RZ	18	18	-	4.6/6.9	4	<1.1	20
MP-20RZM	-	-	13	4.6/6.9	4	<1.1	20
MP-30R	20	20	-	3.8/5.4	2.5	<1.3	45
MP-30RM	-	-	16	3.8/5.4	2.5	<1.3	45
MP-30RX	26	26	-	2.9/4.1	2	<1.1	45
MP-30RXM	-	-	20	2.9/4.2	2	<1.1	45
MP-30RZ	18	18	-	2.9/4.3	6	<1.1	45
MP-30RZM	-	-	13	2.9/4.4	6	<1.1	45
MP-40R	20	20	-	4.6/6.5	4	<1.1	65
MP-40RM	-	-	16	4.6/6.5	4	<1.1	65
MP-40RX	26	26	-	3.3/4.7	2	<1.1	65
MP-40RXM	-	-	20	3.3/4.7	2	<1.1	65
MP-55R	26	26	-	5.6/8.2	4	<1.2	90
MP-55RM	-	-	20	5.6/8.3	4	<1.2	90
MP-55RZ	26	26	-	5.6/8.4	8	<1.1	90
MP-55RZM	-	-	20	5.6/8.5	8	<1.1	90

MP 380V Magnetic Water Pump Non Leakage Mag Drive Centrifugal Pump
