3000RPM Emergency Fire Water Pump System 380V Centrifugal Pump Fire Fighting

Ask Lasest Price
Brand Name :	ZY
Model Number :	EDJ
Price :	$1000-$20000
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1000set/month
Delivery Time :	7-30WD
Certification :	ISO9001

Add to Cart

Product Details
Company Profile

3000RPM Emergency Fire Water Pump System 380V Centrifugal Pump Fire Fighting

Fire fighting water pump powered by diesel engine

Fire fighting water pump powered by diesel engine cast iron 380v

Fire Fighting Equipment Model	FF200-120	FF350-120	FF500-120
Color	Fire Fighting Red Color
Chasis	Steel Base with 8hours integrated fuel tank for Diesel Engine
Diesel Engine Model	YD480D	YD480D	YD4100D
HP	38	38	73
Working RPM	3000 RPM	3000 RPM	3000 RPM
Main Water Pump Model	XA40/26	XA50/26	XA65/26
Main Water Pump Inlet	2.5"	2.5"	3"
Main Water Pump Outlet	1.5"	2"	2.5"
Main Water Pump Seal	Mechanical Seal	Mechanical Seal	Mechanical Seal
Main Water Pump Flow	200 GPM	350 GPM	500 GPM
Main Water Pump Pressure	120 PSI	120 PSI	120 PSI
Coupling type	Flexible (No clutch)	Flexible (No clutch)	Flexible (No clutch)
Jockey Pump model	Vertical Multistage Pump with electric motor
Jockey Pump Flow	8 GPM	8 GPM	20 GPM
Jockey Pump Pressure	120 PSI	120 PSI	120 PSI
Jockey Pump Seal	Mechanical Seal	Mechanical Seal	Mechanical Seal
Jockey Pump Frequency	60 HZ	60 HZ	60 HZ
Jockey Pump Voltage	110/220V	110/220V	440V
Jockey Pump Phases	1 Phase	1 Phase	3 Phase
Jockey Pump PSI activation point	90 PSI	90 PSI	90 PSI
Main Diesel Pump PSI activation point	60 PSI	60 PSI	60 PSI

3000RPM Emergency Fire Water Pump System 380V Centrifugal Pump Fire Fighting

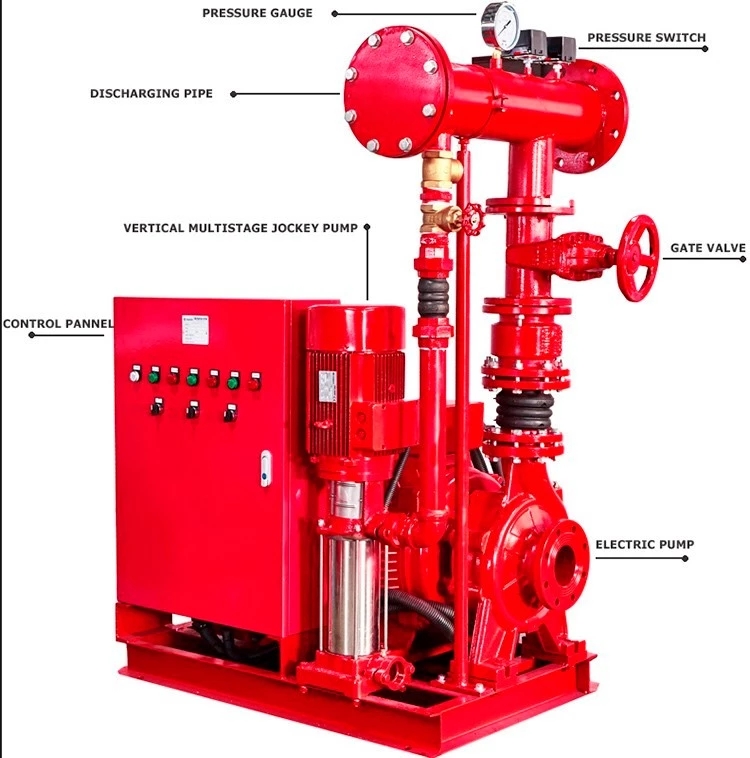

SYSTEM TYPE 1----EJ Fire Pump Set with Electric+Jockey Pump

PEJ Fire Pump Set consists of End Suction Centrifugal Pump driven by Electric Motor and Vertical Jockey Pump. Pumps are assembled with discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.

SYSTEM TYPE 2--DJ Fire Pump Set with Diesel+Jockey Pump

PEJ Fire Pump Set consists of End Suction Diesel Pump, and Vertical Jockey Pump. Pumps are assembled with discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.

SYSTEM TYPE 3-- EDJ Fire Pump Set with Electric+Diesel+Jockey Pump+Pressure Vessel

PEDJ Fire Pump Set consists of End Suction Centrifugal Pump driven by Electric Motor, Diesel Engine, and Vertical Jockey Pump. Pumps are assembled with Pressure Vessel, discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.
Accessories include Suction pipe, Discharge pipe with Flanges, Battery, Gate Valves, Check Valves, Flexible Expansion Joints, Pressure Switches, Pressure Gauge, Base Frame, etc.

Control Panel Box

Fire Pump Control Panel is the Pump System brain that designed to Control & Monitor the operation of the Electric, Diesel, and Jockey Pumps Drivers, and makes up pumps for both Manual & Automatic modes, as well as turns pumps drivers ON/OFF under specific conditions.
The Fire Pump Package Controller detects signals through set of built in switches that reflect the system Pressure & Flow status enabling fire pump package drivers (Electrical /Diesel /Jockey) to operate in case of pressure in the system is lower than set point, as well as operating the Stand by driver due to power failure and/or substantial drop in pressure.
Fire Pumps Series Controllers are pre-wired, tested before delivery and made ready for immediate usage.

Fire Pump System Accessories
