1.5 Inch Gasoline Fire Pump Emergency Fire Water Pump System

Ask Lasest Price
Brand Name :	ZY
Model Number :	HM
Price :	$50-$1000
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000set/month
Delivery Time :	7-30WD

Add to Cart

Product Details
Company Profile

1.5 Inch Gasoline Fire Pump Emergency Fire Water Pump System

1.5 inch BT-15 Portable Electric Fire Fighting Gasoline Water Pump

MODEL		BT-WP20	BT-WP30	BT-WP40
Water Pump	Inlet and outlet inside diameter(mm)	50(2inch)	80(3inch)	100(4inch)
	Displacement(m3/h)	30	60	80
	Total head(m)	28	30	25
	Suction(m)	8	8	8
Engine	Model	GX168F	GX168F-1	GX177F
	Engine Type	4-Stroke,single cylinder with air-cooled
	*BoreStroke(mm)**	68*54	68*54	77*58
	Displacement(cc)	163	196	270
	Comperession ratio	8:05:01	8:05:01	8:02:01
	Max.power(hp/rpm)	5.5/3600	6.5/3600	9/3600
	Ignition System	Non-contact tranistorized ignition (TCI)
	Starting System	Recoil Starting
	Fuel Tank capacity(L)	3.6	3.6	6
Package	Dimension(LXWXH)mm	480370415	505410450	635460510
	Net Weight(kg)	28	31	47
	20'FCL(pcs)	320	300	180
	40'HQ(pcs)	640	600	360

1.5 Inch Gasoline Fire Pump Emergency Fire Water Pump System

SYSTEM TYPE 1----EJ Fire Pump Set with Electric+Jockey Pump

PEJ Fire Pump Set consists of End Suction Centrifugal Pump driven by Electric Motor and Vertical Jockey Pump. Pumps are assembled with discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.

SYSTEM TYPE 2--DJ Fire Pump Set with Diesel+Jockey Pump

PEJ Fire Pump Set consists of End Suction Diesel Pump, and Vertical Jockey Pump. Pumps are assembled with discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.

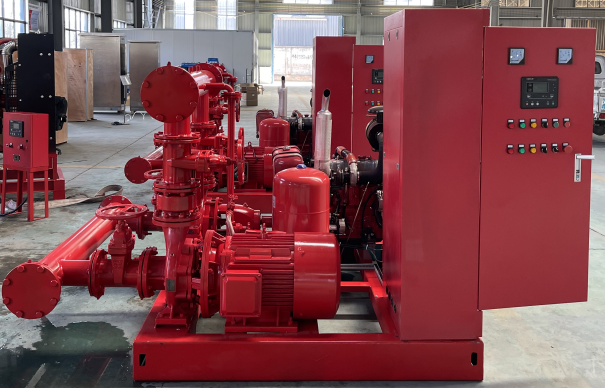

SYSTEM TYPE 3-- EDJ Fire Pump Set with Electric+Diesel+Jockey Pump+Pressure Vessel

PEDJ Fire Pump Set consists of End Suction Centrifugal Pump driven by Electric Motor, Diesel Engine, and Vertical Jockey Pump. Pumps are assembled with Pressure Vessel, discharge line accessories as well as Control Panel.
Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.
Accessories include Suction pipe, Discharge pipe with Flanges, Battery, Gate Valves, Check Valves, Flexible Expansion Joints, Pressure Switches, Pressure Gauge, Base Frame, etc.

Control Panel Box

Fire Pump Control Panel is the Pump System brain that designed to Control & Monitor the operation of the Electric, Diesel, and Jockey Pumps Drivers, and makes up pumps for both Manual & Automatic modes, as well as turns pumps drivers ON/OFF under specific conditions.
The Fire Pump Package Controller detects signals through set of built in switches that reflect the system Pressure & Flow status enabling fire pump package drivers (Electrical /Diesel /Jockey) to operate in case of pressure in the system is lower than set point, as well as operating the Stand by driver due to power failure and/or substantial drop in pressure.
Fire Pumps Series Controllers are pre-wired, tested before delivery and made ready for immediate usage.

Fire Pump System Accessories
