QBY hydrochloric acid pump using compressed air as the power
source. It can convey corrosive, volatile, flammable, poisonous liquid or fluid
with particles and high viscosity liquid etc.
| Specification: |
| Inlet/outlet | 10-100mm | 3/8-4 inches |
| Capacity | 0-30m3/h | 16-480 L/Min |
| Head | 0-50m |
| Suction Lift | 5-7m |
| Exit Pressure | 6 kgf/cm2 |
| Max Grain Dia | 10mm |
| Max Air Pressure | 7 kgf/cm2 |
| Max Air Consumption | 1.5 m3/min |
| Certification | ISO9001:2008, CE |
| Pump body | Stainless Steel, Cast Iron, Aluminum, Polypropylene, Engineering
Plastic, Cast Steel+Teflon Lined, Cast Iron+Rubber Lined; |
| Diaphragm | NBR,Viton,Neoprene,Teflon,EPDM,Santoprene,Hytrel,PVDE etc. |
| Material of non-wetted parts | Cast Iron, Aluminum Alloy, Plastic, PP etc. |
Material of wetted parts | Stainless Steel, Cast Iron, Aluminum, Polypropylene, Engineering
Plastic, Cast Steel+Teflon Lined, Cast Iron+Rubber Lined; |
Parameter Table:
| Model | Discharge | Head | Exit Pressure | Sucked Lift | Grain Dia | Air Pressure | Air consumption |
| (m3/h) | (m) | (kgf/cm2) | (m) | (mm) | (kgf/cm2) | (m3/min) |
| QBY-10 | 0-0.8 | 0-50 | 6 | 5 | 1 | 7 | 0.3 |
| QBY-15 | 0-1 | 0-50 | 6 | 5 | 1 | 7 | 0.3 |
| QBY-25 | 0-2.4 | 0-50 | 6 | 7 | 2.5 | 7 | 0.6 |
| QBY-40 | 0-8 | 0-50 | 6 | 7 | 4.5 | 7 | 0.6 |
| QBY-50 | 0-12 | 0-50 | 6 | 7 | 8 | 7 | 0.9 |
| QBY-65 | 0-16 | 0-50 | 6 | 7 | 8 | 7 | 0.9 |
| QBY-80 | 0-24 | 0-50 | 6 | 7 | 10 | 7 | 1.5 |
| QBY-100 | 0-30 | 0-50 | 6 | 7 | 10 | 7 | 1.5 |
Application:
1. the pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and
syrup etc.
2. the pump can suck the paint, pigment, glue, and adhesive etc.
3. the pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
4. the pump can suck various grinding materials, corrosive agent and clean the oil dirt etc.
5. the pump can suck various toxin and flammable or volatility liquid etc.
6. the pump can suck various wedge water, cement slurry and mortar etc.
7. the pump can suck various strong acid, alkali and corrosive liquid etc.
8. It can be used as a front-step transmission device of the solid and liquid
separation equipment.

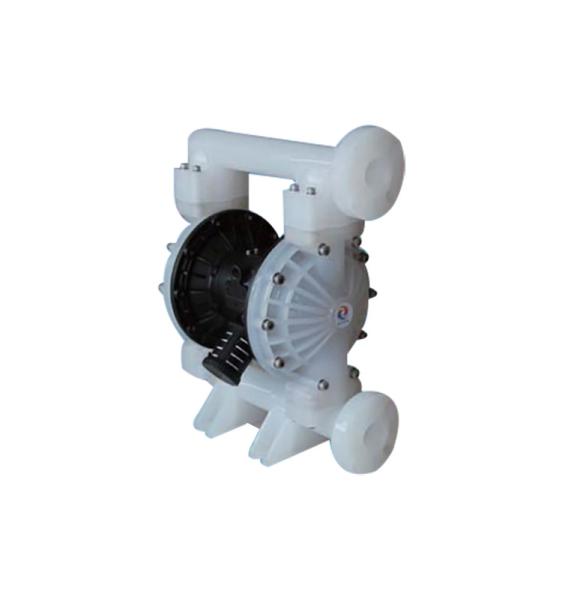

Picture show:
